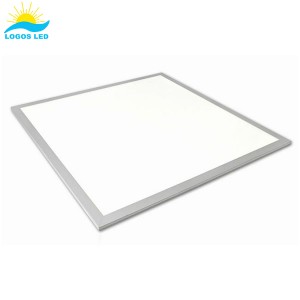

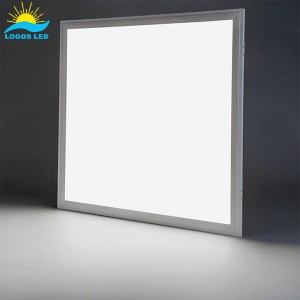

LED Panel Light 600*600mm 40W

Model No.: LGS-PL01-22-40W-1

Power: 40W

Input Voltage: AC100-240V

Dimension: 595*595*9mm
Lumen Output: 4000lm
CRI: Ra>80
CCT: 2700-6500K
Lifespan: 50000Hrs
Certification: CE, RoHS
Warranty: 5 years

  • Description
  • Specifications
  • Learn More
  • Inquiry

Features

♦ Using high quality SMD LED as light source;
♦ No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly;
♦ Instant start, gentle light, no shadow, no flickering, eye-protective;
♦ High light efficiency, low power consumption, effectively saving energy cost;
♦ High power factor, completely conform to the requirements of state power grid;
♦ High CRI, vivid color rendering;
♦ Energy efficient, 70% energy saving compared with traditional CFL grille light;
♦ Long life span, more than 50,000 hours, greatly reduce the cost of light source replacement and maintenance;
♦ Good adaptability, easy installation, can replace traditional grille lights completely.

Product Details

Product Detail 1

Product Detail 2

Product Detail 3

Specifications

Product NameLED Panel Light
Model No.LGS-PL01-22-40W-1








Optical

LEDsSMD2835
Lumen Output4000lm±10%
Luminous Efficiency(lm/w)100lm/w
Color Temperature(CCT)2700-6500K
Color Rendering Index(CRI)Ra>80
Beam Angle θ/2120°
Light Decay Rate(%)Less than 3% in 6,000Hours
Lifespan(Hrs)≥50,000Hrs




Electrical

Power Consumption(W)40W±10%
Input Voltage(V)100-240VAC
Frequency(Hz)50/60Hz
Power Factor(PF)>0.9
Start Time(s)≤0.1s
Driver Efficiency>88%
Total Harmonic Distortion(THD)<20%
DriverTUV/CE/RoHS approval driver




Mechanical

MaterialAluminum+PMMA
Degree of ProtectionIP40
Dimensions(mm)595*595*9mm
AppearanceWhite/Silver
InstallationRecessed/Hanging/Surface Mounted


Packing

Net Weight(KG)3.2KG/pcs
Package6pcs/CTN
Gross Weight(KG)21.5KG/CTN
Cartoon Dimensions(mm)675*200*650mm




Other

Working Tem. & Humidity-30℃~+50℃,10%~90%R.H.
Storage Temp. & Humidity-40℃~+70℃,0%~95%R.H.
CertificateCE, RoHS
Warranty5 years
Dimming0-10V/Traic/PWM/Dali Available

Application

Widely applied in shopping center, hotel, hospital, school, office, meeting room, library, metro station, home lighting, etc.

Installation

Recessed

LED Panel Light embeded installation

Suspending

LED Panel Light suspending installation

Surface Mounted

LED Panel Light surface mounted installation



Packing

LED Panel Light package
