CCT Tunable LED Panel Light 600*600mm 40W

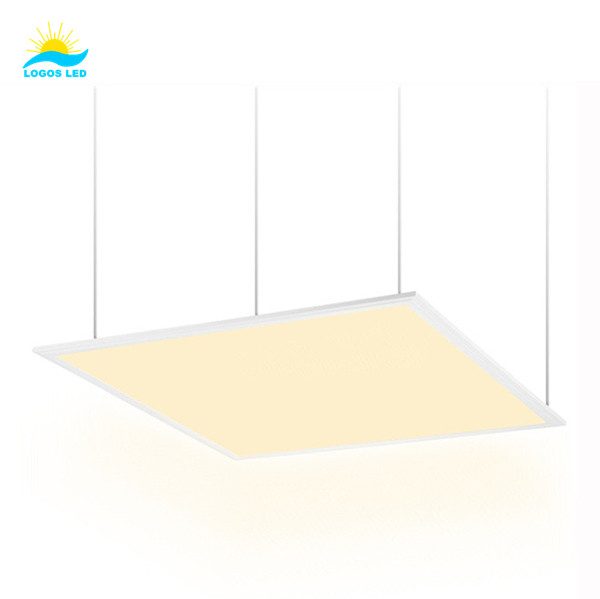

36W Dimmable and Color Temperature Changing LED panel light 1

36W Dimmable and Color Temperature Changing LED panel light 2

CCT Tunable LED Panel Light 600*600mm 40W

Model No.: LGS-PL01-22-40W(T)

Power: 40W

Input Voltage: AC100-240V

Dimension: 595*595*9mm
CRI: Ra>80
Color: White/Warm White
Lifespan: 50000Hrs
Certification: CE, RoHS
Warranty: 5 years

Description
Specifications
Learn More
Inquiry

Features

♦ Using high quality SMD LED as light source;
♦ No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly;
♦ Instant start, gentle light, no shadow, no flickering, eye-protective;
♦ High light efficiency, low power consumption, effectively saving energy cost;
♦ High power factor, completely conform to the requirements of state power grid;
♦ CCT tunable with 2.4G remote control, meet various applications;
♦ Energy efficient, 70% energy saving compared with traditional CFL grille light;
♦ Long life span, more than 50,000 hours, greatly reduce the cost of light source replacement and maintenance;
♦ Good adaptability, easy installation, can replace traditional grille lights completely.

Product Details

Product Detail 1

Product Detail 2

CCT Changing and Tunable LED Panel Light Details

CCT Changing and Tunable LED Panel Light

Specifications

Product Name		LED Panel Light
Model No.		LGS-PL01-22-40W(T)
Optical	LEDs	SMD
	Color	White/Warm White
	Color Rendering Index(CRI)	Ra>80
	Beam Angle θ/2	120°
	Light Decay Rate(%)	Less than 3% in 6,000Hours
	Lifespan(Hrs)	≥50,000Hrs
Electrical	Power Consumption(W)	40W±10%
	Input Voltage(V)	100-240VAC
	Frequency(Hz)	50/60Hz
	Power Factor(PF)	>0.9
	Start Time(s)	≤0.1s
	Driver Efficiency	>88%
	Total Harmonic Distortion(THD)	<20%
	Driver	TUV/CE/RoHS approval driver
Mechanical	Material	Aluminum+PMMA
	Degree of Protection	IP40
	Dimensions(mm)	5955959mm
	Appearance	White/Silver
	Installation	Recessed/Hanging/Surface Mounted
Packing	Net Weight(KG)	3.2KG/pcs
	Package	6pcs/CTN
	Gross Weight(KG)	21.5KG/CTN
	Cartoon Dimensions(mm)	675200650mm
Other	Working Tem. & Humidity	-30℃~+50℃，10%~90%R.H.
	Storage Temp. & Humidity	-40℃~+70℃，0%~95%R.H.
	Certificate	CE, RoHS
	Warranty	5 years
	Dimming	2.4G Remote Control
