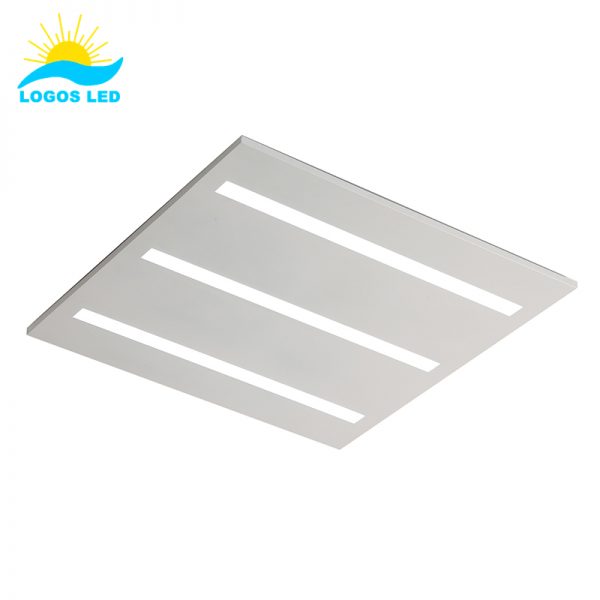

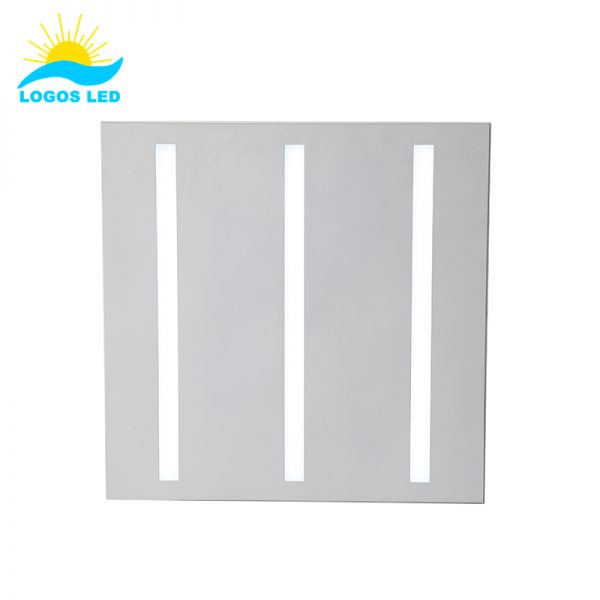

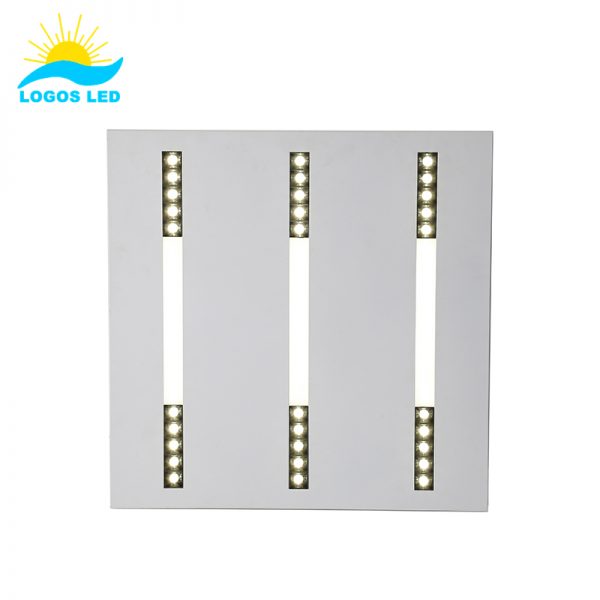

Grille LED Panel Light 600*600mm 36W

Model No.: LGS-PL01-22-36W(G)

Power: 36W

Input Voltage: AC100-240V 50/60Hz

Dimension: 595*595*25mm
Lumen Output: 4320lm
CRI: Ra>80
CCT: 2700-6500K
Lifespan: 50000Hrs
Certification: CE, RoHS
Warranty: 5 years

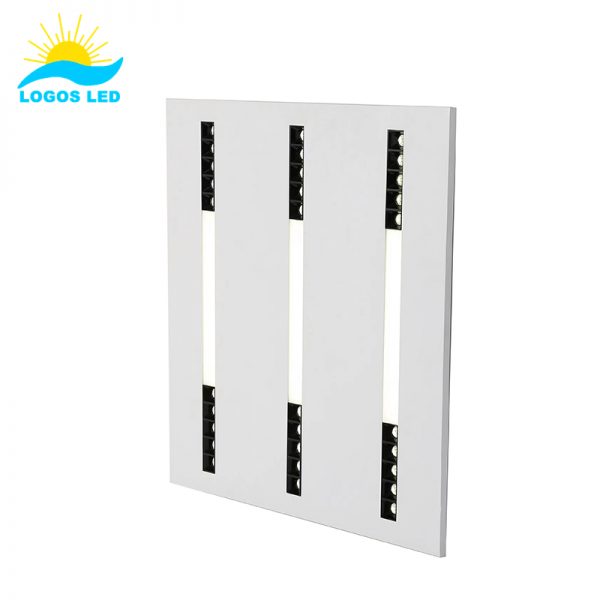

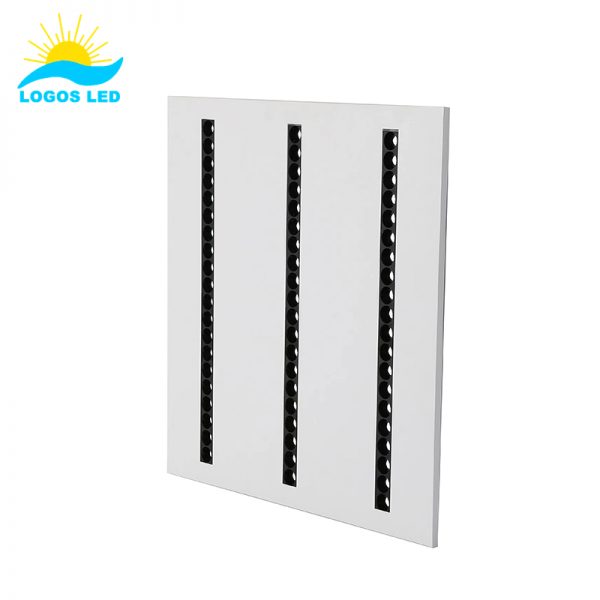

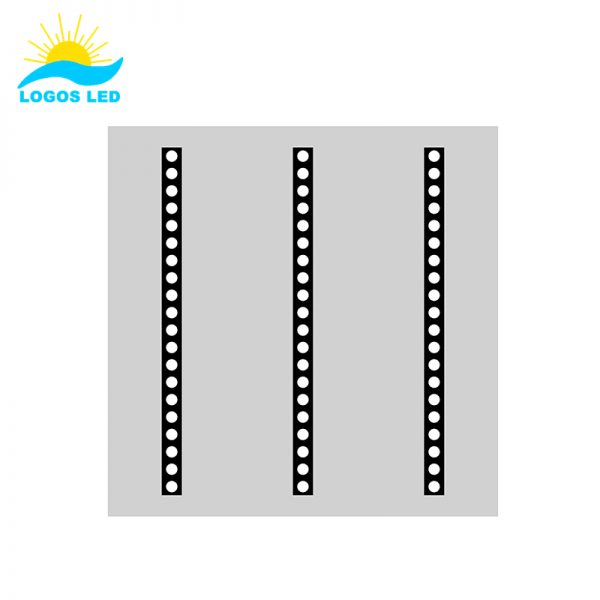

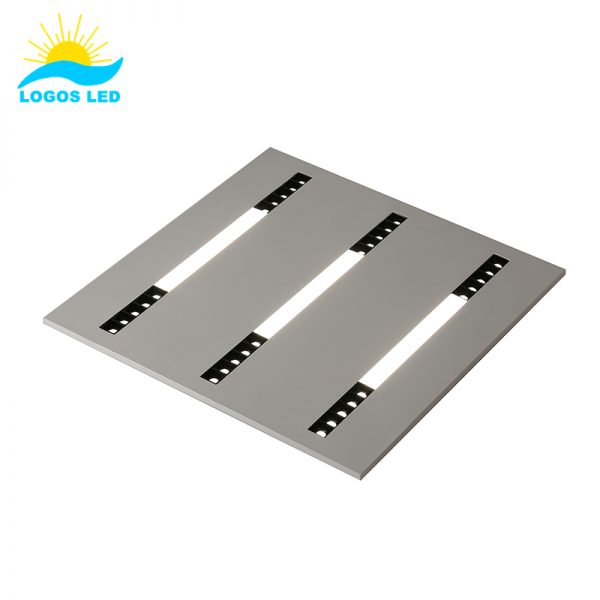

♦ Revolutionary lens design to offer high-efficiency lighting output, anti-glare, and UGR<13 available;
♦ Packed with branded LEDs and power supply to ensure the product reliability and life expectancy;
♦ No Mercury, no UV or IR radiation, EMI free, completely green, and environmentally friendly;
♦ Instant start, gentle light, no shadow, no flickering, eye-protective;
♦ High power factor, completely conforms to the requirements of the state power grid;
♦ High CRI, vivid color rendering; custom led panel
♦ Energy efficient, 70% energy saving compared with traditional CFL grille light;
♦ Long life span of more than 50,000 hours, greatly reduces the cost of light source replacement and maintenance;
♦ Good adaptability, easy installation, can replace traditional grille lights completely;
♦ No LGP, don’t worry about the yellowing of traditional LED panel lights;
♦ Available with Triac dimming, 1-10V dimming, and DALI dimming & intelligent controls.


Product Name Grille LED Panel Light
Model No. LGS-PL01-22-36W(G)


LEDs SMD2835
Lumen Output 4320lm
Luminous Efficiency(lm/w) 120lm/w
Color Temperature(CCT) 2700-6500K
Color Rendering Index(CRI) Ra>80(Ra>90 on request)
Beam Angle θ/2 36°/120°/36+120°
Light Decay Rate(%) Less than 3% in 6,000Hours
Lifespan(Hrs) ≥50,000Hrs


Power Consumption(W) 36W
Input Voltage(V) 220-240/100-240VAC
Frequency(Hz) 50/60Hz
Power Factor(PF) >0.9
Start Time(s) ≤0.1s
Driver Efficiency >88%
Total Harmonic Distortion(THD) <10%
Driver Philips/Osram


Material Iron+Polycarbonate
Degree of Protection IP44 custom led panel
Dimensions(mm) L595*W595*H25mm
Appearance White
Installation Recessed / Mounted / Suspended


Net Weight(KG) 2.75KG/pcs
Package 4pcs/CTN
Gross Weight(KG) 13.5KG/CTN
Cartoon Dimensions(mm) 640*640*148mm


Working Tem. & Humidity -30℃~+50℃,10%~90%R.H.
Storage Temp. & Humidity -40℃~+70℃,0%~95%R.H.
Certificate CE, RoHS
Warranty 5 years custom led panel
Dimming 0-10V/Traic/PWM/Dali Available


Widely applied in shopping center, hotel, hospital, school, office, meeting room, library, metro station, home lighting, etc.



LED Panel Light embeded installation


LED Panel Light suspending installation

Surface Mounted

LED Panel Light surface mounted installation


LED Panel Light package
