Description

Features

♦ Fashionable ADC12 die casting Aluminum with large cooling fins design, excellent for heat dissipation;
♦ Use high quality LEDs and power supply to ensure the product reliability and life expectancy;
♦ Professional reflection cup and optical design make the luminous efficiency 10% higher than other LED flood lights under same conditions;
♦ Professional light distribution with different beam angles are optional for your various applications;
♦ Lengthened the bracket, apply for more different places than other LED flood lights;
♦ IP66 structural waterproof design.

Product Details

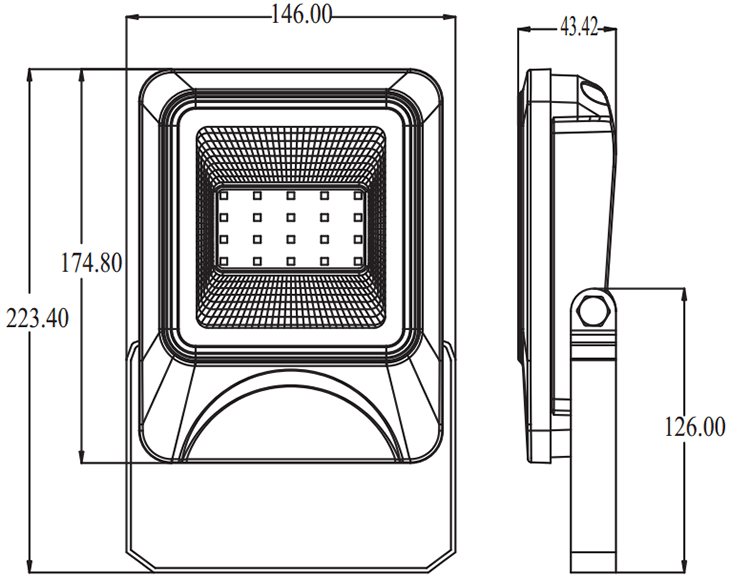

Dimensions

Specifications

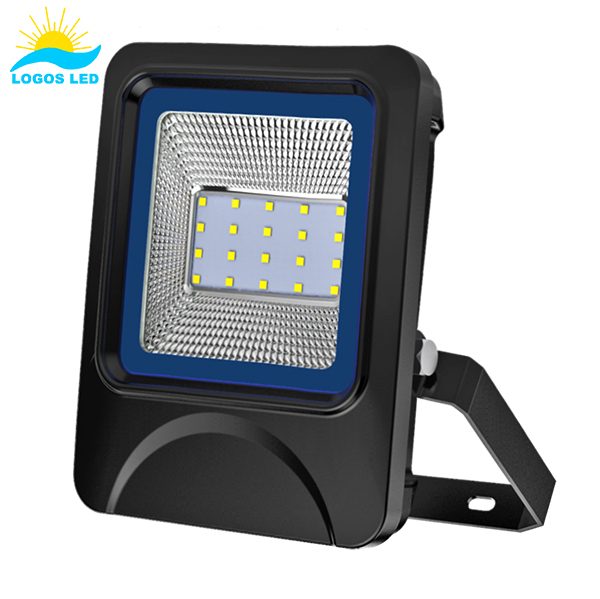

Product Name		Luna LED Flood Light
Model No.		LGS-FLL-20W
Optical	LEDs	Osram
	Lumen Output	2200lm±10%
	Luminous Efficiency(lm/w)	110lm/w
	Color Temperature(CCT)	2700-6500K
	Color Rendering Index(CRI)	Ra>80
	Beam Angle θ/2	10°/25°/45°/60°/90°/120°
	Light Decay Rate(%)	Less than 3% in 6,000Hours
	Lifespan(Hrs)	≥50,000Hrs
Electrical	Power Consumption(W)	20W±10%
	Input Voltage(V)	100-240VAC
	Frequency(Hz)	50/60Hz
	Power Factor(PF)	>0.9
	Start Time(s)	≤0.1s
	Driver Efficiency	>90%
	Total Harmonic Distortion(THD)	<20%
	Driver	TUV/CE/RoHS approval driver
Mechanical	Material	Aluminum+Tempered Glass
	Degree of Protection	IP66
	Dimensions(mm)	175*146*44mm
	Appearance	Black
	Installation	Mounting
Packing	Net Weight(KG)	0.90KG/pcs
	Package	20pcs/CTN
	Gross Weight(KG)	19KG/CTN
	Cartoon Dimensions(mm)	600*335*215mm
Other	Working Tem. & Humidity	-25℃~+50℃，10%~90%R.H.
	Storage Temp. & Humidity	-40℃~+70℃，0%~95%R.H.
	Certificate	CE, RoHS
	Warranty	3 years
	Dimming	0-10V/PWM/Dali Available

Light Distribution Curve

Applications

Widely used for shopping center, exhibition hall, parking lot, stadium, gymnasium, billboard, park, statue, government lighting decoration project, landmark or building, pubic square and passage, building connecting passage, and other indoor or outdoor light applications.

Package

Installation

Notice

1. Please turn off power before install or change assembly parts.
2. The input voltage and lamps should be matched. After connecting the power line, please make sure the wiring section is insulated.
3. Non-professionals, must not install and disassemble the lamps.
