Luna 50W LED Flood Light

Model No.: LGS-FLL-50W

Power: 50W

Input Voltage: 100-240VAC
Light source: Osram

Driver brand: Meanwell/Sosen
CRI: >80Ra
CCT: 2700-6500K
Lifespan: 50,000hrs

Beam Angle: 10°/25°/45°/60°/90°/120°
Certification: CE, RoHS
Warranty: 5 years

  • Description
  • Specifications
  • Learn More
  • Inquiry

Features

♦ Fashionable ADC12 die casting Aluminum with large cooling fins design, excellent for heat dissipation;
♦ Use high quality LEDs and power supply to ensure the product reliability and life expectancy;
♦ Professional reflection cup and optical design make the luminous efficiency 10% higher than other LED flood lights under same conditions;
♦ Professional light distribution with different beam angles are optional for your various applications;
♦ Lengthened the bracket, apply for more different places than other LED flood lights;
♦ IP66 structural waterproof design.

Product Details

Flood Light Explosing Structure

Connector



Dimensions

Diagram-50W LED Flood Light

Specifications

Product NameLuna LED Flood Light
Model No.LGS-FLL-50W








Optical

LEDsOsram
Lumen Output6000lm±10%
Luminous Efficiency(lm/w)120lm/w
Color Temperature(CCT)2700-6500K
Color Rendering Index(CRI)Ra>80
Beam Angle θ/210°/25°/45°/60°/90°/120°
Light Decay Rate(%)Less than 3% in 6,000Hours
Lifespan(Hrs)≥50,000Hrs




Electrical

Power Consumption(W)50W±10%
Input Voltage(V)100-240VAC
Frequency(Hz)50/60Hz
Power Factor(PF)>0.95
Start Time(s)≤0.1s
Driver Efficiency>90%
Total Harmonic Distortion(THD)<20%
DriverMean Well/Sosen




Mechanical

MaterialAluminum+Tempered Glass
Degree of ProtectionIP66
Dimensions(mm)275*242*48mm
AppearanceBlack
InstallationMounting


Packing

Net Weight(KG)2.1KG/pcs
Package10pcs/CTN
Gross Weight(KG)22KG/CTN
Cartoon Dimensions(mm)525*370*315mm




Other

Working Tem. & Humidity-25℃~+50℃,10%~90%R.H.
Storage Temp. & Humidity-40℃~+70℃,0%~95%R.H.
CertificateCE, RoHS
Warranty5 years
Dimming0-10V/PWM/Dali Available

Light Distribution Curve



Light Distribution 50W

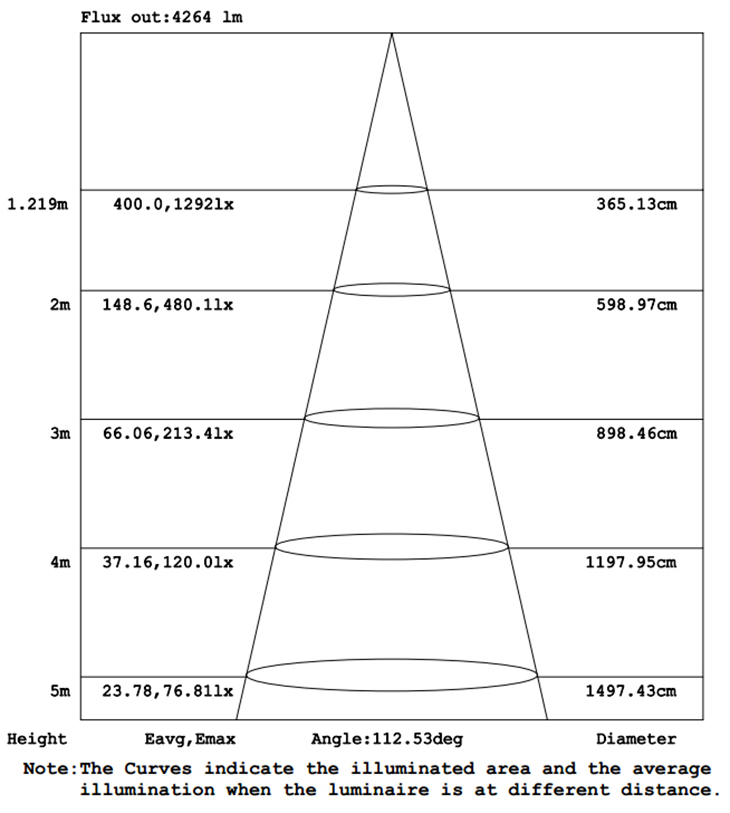

Light Flux Out 50W

Applications

Widely used for shopping center, exhibition hall, parking lot, stadium, gymnasium, billboard, park, statue, government lighting decoration project, landmark or building, pubic square and passage, building connecting passage, and other indoor or outdoor light applications.

Package

LED Flood Light Packing-1

LED Flood Light Packing-2



Installation

Luna LED Flood Light Installation

Notice

1. Please turn off power before install or change assembly parts.
2. The input voltage and lamps should be matched. After connecting the power line, please make sure the wiring section is insulated.
3. Non-professionals, must not install and disassemble the lamps.
